ProVisionaire Touch

Smart Looks and Flexible Design for Custom Wireless Control Panels

ProVisionaire Touch is a software based control and display interface creation tool for customized remote control of Yamaha MTX and MRX series processors. No specialized programming skills are required. An intuitive interface makes it easy to create faders for volume control and switches for source selection, for example, and position photographs or other graphic elements on the tablet screen as required to create original control panels that are ideally suited to individual applications and users.

Wide support for Yamaha pro audio equipment

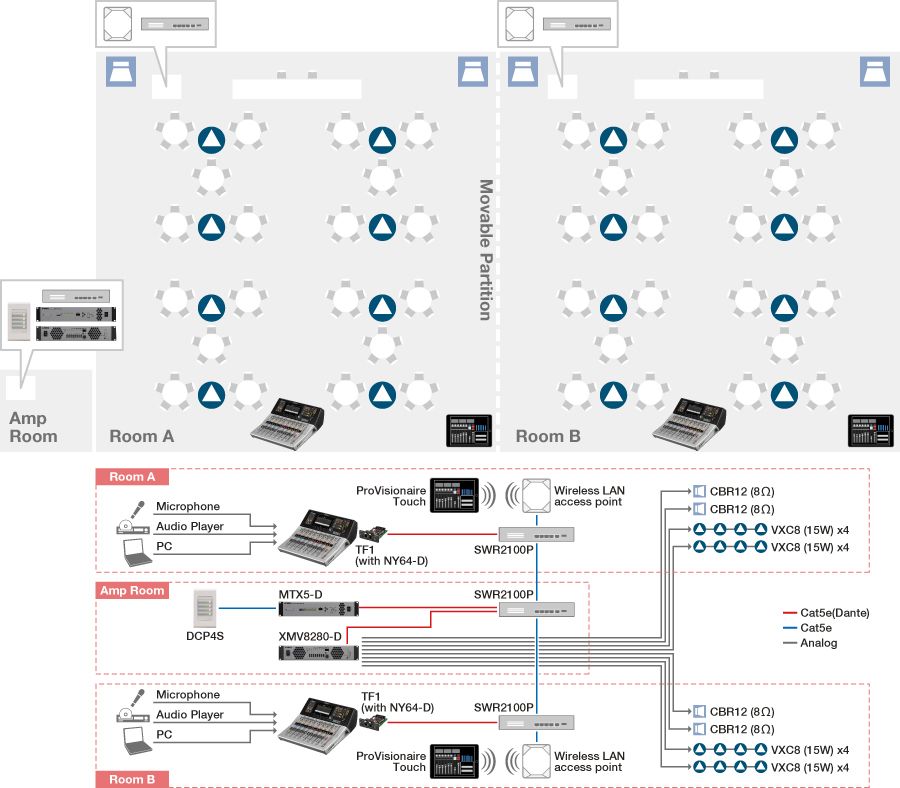

On a single iPad, you can bring together the control functionality that you need to adjust the volume of multiple fader channels for the MTX/MRX series of signal processors or the CL/QL/TF series, or adjust the HA gain of the R-series (ADDA) I/O racks when tuning the system. This allows you to construct a more convenient control system that's ideally suited to your specific venue, whether it be a cafe, restaurant, hotel banquet hall, conference room, auditorium, or event space.

Wide support for Yamaha pro audio equipment

Remote MultiCast® control makes the most of music content

Remote volume, playback, and audio device control

Remote volume, playback, and audio device control

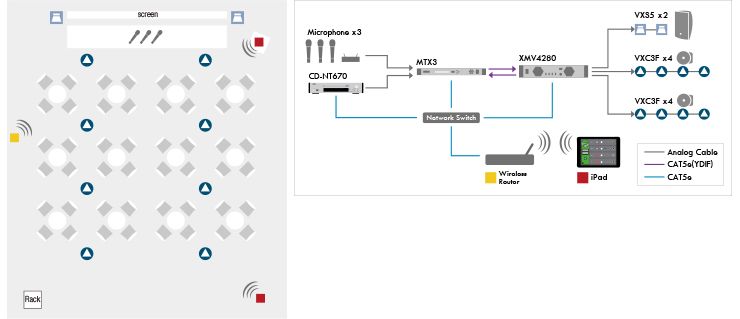

Remote control of MusicCast enabled audio devices is now supported. A MusicCast capable CD player such as the CD-NT670 could be added to an installation that is based on MTX and/or MRX series processors, with playback and track selection controlled via a WiFi network from a single iPad. This type of capability is ideal for controlling playback devices, adjusting volume, and selecting areas in restaurant and banquet hall situations.

Versatile control over a wide range of music sources

In addition to audio equipment connected to MusicCast enabled devices, ProVisionaire Touch now supports computers, networked storage, music files stored on mobile computing devices, and Internet radio. Playlists from the controlled device appear on the ProVisionaire Touch control panel, allowing easy, intuitive control of remote sources. ProVisionaire Touch V1.2 is a great way to take full advantage of a large music library stored on a computer, hard disk, or network storage device.

Supported devices

- Network compatible CD player:CD-NT670, CD-NT670D

- Wireless Streaming Amplifier: WXA-50

- Wireless Streaming PreAmp: WXC-50

Video content support

Video content support

By combining MTX/MRX system with the MusicCast® compatible AV receiver and the Yamaha Blu-ray disc player, it is possible to select the music source, switch the HDMI input source with the AV receiver, and control the device including the video playback of the Blu-ray disc all together with one iPad. For example, by combining video and audio content control in one iPad used in a conference room or classroom, a simpler and more convenient control system can be constructed.

Disklavier™ ENSPIRE control support

Remote entertainment control from playback to performance

Remote entertainment control from playback to performance

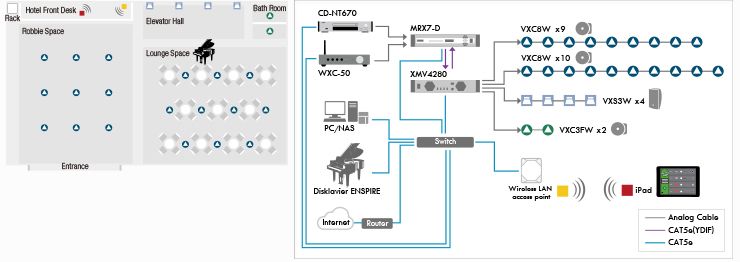

ProVisionaire Touch V1.2 supports the Yamaha Disklavier™ ENSPIRE, providing wireless remote control of automated acoustic piano playback as well as DisklavierRadio streaming. Centralized control of BGM sources such as CD players as well as the Disklavier from the ProVisionaire Touch app makes it easy to switch between acoustic piano and recorded sources according to the time of day or event schedules. ProVisionaire Touch is a smooth, effortless way to remotely control a variety of entertainment programs.

Supported Pianos

- Upright Pianos: YUS1ENST, YUS1Wn-ENST, YUS1MhC-ENST, YUS3ENST, YUS3Wn-ENST, YUS3MhC-ENST, YUS5ENST, YUS5Wn-ENST, YUS5MhC-ENST

- Grand Pianos: C1X-ENST, C2X-ENST, C2XCP-ENST, C3X-ENPRO, C5X-ENPRO, C6X-ENPRO, C7X-ENPRO

Supported devices

ProVisionaire Touch V2.1
Signal Processor MTX3, MTX5-D, MRX7-D
Digital Mixing Console, Digital Mixer CL1, CL3, CL5, QL1, QL5, TF1, TF3, TF5, TF-RACK
Power Amplifier XMV4140, XMV4140-D, XMV4280, XMV4280-D, XMV8140, XMV8140-D, XMV8280, XMV8280-D
I/O EXi8, EXo8
Rio3224-D, Rio1608-D, Ri8-D, Ro8-D
Rio3224-D2, Rio1608-D2
Speaker VXL1B-16P, VXL1W-16P
MusicCast Device Network compatible CD player:CD-NT670, CD-NT670D
Wireless Streaming Amplifier: WXA-50
Wireless Streaming PreAmp: WXC-50
Blu-ray Disc player: BD-A1060, BD-S681
AV receiver: MusicCast compatible AV receiver
Disklavier™ ENSPIRE Upright Pianos: YUS1ENST, YUS1Wn-ENST, YUS1MhC-ENST, YUS3ENST, YUS3Wn-ENST, YUS3MhC-ENST, YUS5ENST, YUS5Wn-ENST, YUS5MhC-ENST
Grand Pianos: C1X-ENST, C2X-ENST, C2XCP-ENST, C3X-ENPRO, C5X-ENPRO, C6X-ENPRO, C7X-ENPRO

Basic procedure: setup to operation

Step 1: Controller Design

- Create a layout with widgets that perform the functions of faders and switches, and assign them to the required MusicCast® and Disklavier™ ENSPIRE functions.

Step 2: MTX/MRX System Setup

- Connect all devices to a single network, and enter the IP address of each device to allow control.

Step 3: Operation

- Once the system is online, all compatible devices including MusicCast® devices and the Disklavier™ ENSPIRE can be controlled. The control panel setup data can be copied to multiple iPads to create additional control panels, as required.

Nazwa Polski Angielski
ProVisionaire Touch Setup Guide [3.8MB]
Nazwa Polski Angielski
A&E Specifications (ProVisionaire Touch) [29KB]

ProVisionaire Touch

Price : Free

Compatible Devices : iPad (not including the first-generation model)

iOS : 8.3 or later

ProVisionaire Touch KIOSK

This app allows the iPad to be set up to function as a dedicated touch-panel controller, preventing end users from accessing the operating system or other apps so that unintended control or design changes cannot occur.

Price : Free

Compatible Devices : iPad (not including the first-generation model)

iOS : 8.3 or later

* Apple, iPhone, iPod touch and iPad are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple. Inc.
