ProVisionaire Design

Zintegrowane oprogramowanie do projektowania do różnych urządzeń audio Yamaha

ProVisionaire Design to oprogramowanie dla systemów operacyjnych Windows, które umożliwia kompleksowe i intuicyjne projektowanie systemów nagłośnienia z wykorzystaniem kompatybilnych produktów Yamaha. Jest kompatybilne z szeroką gamą urządzeń Yamaha, w tym z procesorami z serii DME, MRX7-D i MTX, wzmacniaczami XMV/PC-D, interfejsami Rio/Tio, głośnikami PoE, rozwiązaniami ADECIA i innymi.

ProVisionaire Design ułatwia projektowanie i konfigurację systemów nagłośnienia, pozwalając na elastyczne rozmieszczanie komponentów, trasowanie sygnałów oraz edytowanie parametrów w procesorach o otwartej architekturze, takich jak seria DME i MRX7-D. Zapewnia również kompleksowy podgląd komponentów i trasowania sygnałów w procesorach MTX o architekturze zamkniętej. Obsługuje szeroką gamę wysokiej klasy komponentów audio, dostępnych wyłącznie u lidera w dziedzinie profesjonalnego dźwięku, w tym m.in. REV-X oferujący zaawansowane pogłosy oraz Dugan Auto Mixer umożliwiający automatyczne miksowanie bez zakłóceń. Obsługuje również komponenty logiczne, które mogą być wykorzystywane do tworzenia sekwencji sterujących. ProVisionaire Design może być używany z aplikacjami ProVisionaire Control, zapewniając kompleksowe sterowanie każdym projektem, od etapu projektowania i konfiguracji systemu aż po codzienną obsługę i zarządzanie. Parametry w ProVisionaire Design można przypisywać do ProVisionaire Control PLUS, aby łatwo tworzyć własne panele sterowania.

Yamaha ProVisionaire Design: Integrated design software for variety of Yamaha audio equipment

Devices that Support Design

Produkt	Model*	ProVisionaire Design
Procesor sygnału	MTX3, MTX5-D
	MRX7-D
	DME7
NEXO Immersive Audio Processor	DME10
Wzmacniacz	XMV4140, XMV4140-D, XMV4280, XMV4280-D, XMV8140, XMV8140-D, XMV8280, XMV8280-D
Wzmacniacz	PC406-D, PC406-DI, PC412-D, PC412-DI
We/Wy	EXi8, EXo8
	RSio64-D
	Rio3224-D2, Rio1608-D2
	Rio3224-D3, Rio1608-D3
	Tio1608-D, Tio1608-D2
Głośnik	DZR315-D, DZR315-DW, DZR15-D, DZR15-DW, DZR12-D, DZR12-DW, DZR10-D, DZR10-DW
	DXS18XLF-D, DXS18XLF-DW, DXS15XLF-D, DXS15XLF-DW
	VXL1B-16P, VXL1W-16P
	VXC2P
Mikrofon	RM-CG, RM-TT
Sterownik	ProVisionaire Control PLUS, DCP1V4S-US, DCP4S-US, DCP4V4S-US, MCP1

*There are models that are not available in some regions.

Flexible System Design

Flexible Presets

Presets can be created for linked/grouped devices in addition to individual devices, providing broader flexibility when setting up presets for different applications.

Device Grouping Enhances Setup and Operation Efficiency

Devices can be assigned to groups, allowing various types of control to be applied to the group as a whole. For example, preset recall, overall mute, synchronization, and more can be assigned to entire groups for efficient operation and management.

Fine Tuning and Efficient Workflow

ProVisionaire Design is a powerful tool for sound engineers and systems integrators. Not only does it allow detailed control of a comprehensive range of amplifier and speaker parameters, but individual channels can be linked/grouped as required, and related EQ, delay, and other parameters can be linked as well. All of this can contribute to efficient design and setup of finely tuned systems.

Flexible Audio/Control configuration

Audio configuration

ProVisionaire Design supports high-performance audio and live performance system design for a large number of audio components. In systems based around the DME7 or MRX7-D, it allows the device’s components to be freely and flexibly laid out, and internal parameters to be easily adjusted to achieve the required sonic results. Available components range from basic essentials such as Combiner, Delay, Dynamics, Effect, EQ, Filter, Meter, Matrix Mixer, Router, Source Selector, and Speaker Processor to more high-level functions such as Comp260, DCA, Dugan Automixer, REV-X and more.

Dugan Automixer

Delay Matrix

Room Combiner

AEC

Ducker

Rev-X

Comp260

DCA

Component List

Control configuration (DME7)

By using control components, you can recall parameters in sequence based on simple logic principles governed by statements such as AND, OR, COMPARE. It can be used to describe a wide range of complex relationships in a process by wiring control component and audio component. The logic function enables more complex control designs that go beyond just GPI control, allowing us to meet the detailed requirements of our users.

Button

Fader

Logic

Compare

Max/Min

Delay

Router

GPI In

GPI Out

Component List

Preparation

Offline Simulation (supports DME7)

- Audio routing for logic control setups created offline can be checked and tested without the need to actually have any devices connected.

Probe Monitoring (supports DME7)

- Two probe monitoring points can be defined.

- The signals from the two probe monitor points can be assigned to different output channels and monitored independently.

- Advanced applications of two probe monitor points to check the correlation between the processor input signal and direct microphone signal.

Synchronization

- After offline checks have been carried out using the Offline Simulation and Probe Monitoring functions described above, all that remains to be done to complete the setup is to load the data into the device, significantly reducing setup time.

- The entire system can be placed online at once, or devices can be placed online individually and tested one at a time.

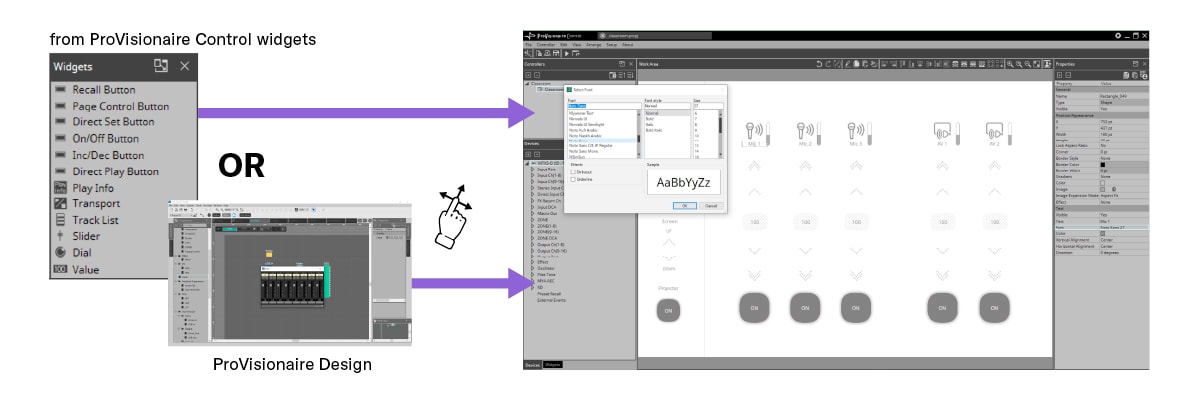

Controller UI Design

An Intuitive Approach to Flexible Controller Design

Microphone faders, ON/OFF switches, and other widgets can be freely placed and arranged on the design page by dragging and dropping from ProVisionaire Design. This provides an easy, intuitive way to create original controllers that are ideally configured for the target installation. Multiple design pages are available so that different control panels can be provided for different audio zones and/or users, with presets and parameter settings optimized for each.
