Seria MA/PA
A Smart Simple Solution
With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technol-ogies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment.
- Simple, user-friendly interface
- Stereo and microphone inputs (MA series)
- DSP functions optimized for background music (MA series)
- Switchable for low (3/4/8 Ω) and high (70/100 V) impedance speaker systems
- Stereo source EQ with enhancer function (MA series)
- EQ for optimum performance with Yamaha VXC/VXS series speakers built in
- Easy service zone expansion with PA series amplifiers (PA2030a excluded)
- Optional DCP control panels allow convenient remote volume control, microphone ON/OFF switching and chime activation (PA2030a excluded)
- Industry leading Yamaha quality control and reliability
- Compact, space-saving design*
* All models are naturally cooled designs that require sufficient surrounding space for airflow.
MA/PA Series Features
Product Information
MA2120 Power Amplifiers
Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4Ω, 100W x2ch @3Ω/8Ω, Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high quality music playback and microphone use.
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
- DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
- Bass and treble stereo source EQ with an enhancer function
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)

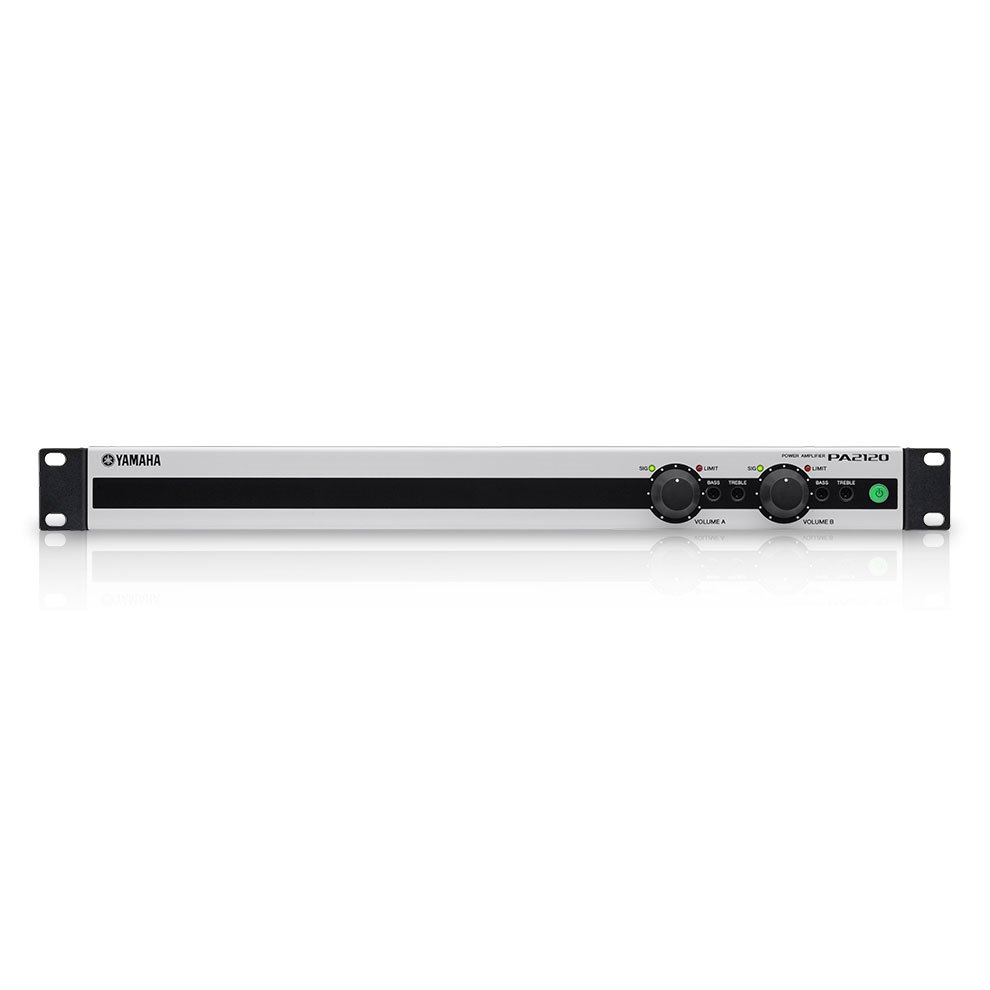

PA2120 Power Amplifiers
Lo-Z/Hi-Z switchable Class-D amplifier (Lo-Z: 120W x2 @4Ω, 100W x2ch @3Ω/8Ω, Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 1 stereo/2 mono line inputs; can be combined with the MA2120 mixer amplifier.
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- 1 stereo/2 mono line inputs
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
MA2030a Power Amplifiers
Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 30W x2ch, Hi-Z: 60W x1ch) equipped with 3 types of selectable stereo inputs, 2 mic inputs and powerful DSP functions for high quality music playback and microphone use.
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (30W @3Ω/4Ω/8Ω) and Hi-Z (60W x1ch, 70V/100V) speaker systems
- Flexible 2 mic inputs and selectable 3 stereo inputs
- Advanced DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler)
- Bass and treble stereo source EQ with enhancer function
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker
- Built-in HPF
- Service zone can be expanded by adding a PA2030a
- Remote volume control and microphone on/off switching via the optional DCP control panels (DCP1V4S, 1 DCP panel per unit)
- Intelligent protection function ensures safe, reliable operation
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
PA2030a Power Amplifiers
Lo-Z/Hi-Z switchable Class-D amplifier (Lo-Z: 30W x2ch, Hi-Z: 60W x1ch) equipped with 1 stereo/2 mono line inputs; can be combined with the MA2030a mixer amplifier.
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (30W @3Ω/4Ω/8Ω) and Hi-Z (60W x1ch, 70V/100V) speaker systems
- 1 stereo/2mono line inputs
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker
- Built-in HPF/LPF
- Intelligent protection function ensures safe, reliable operation
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
Option
DCP1V4S Cyfrowy panel kontrolny
Cyfrowy panel kontrolny do procesorów z serii MTX z możliwością montażu na ścianie, wyposażony w 1 potencjometr głośności oraz 4 przełącznikiŁatwe połączenia, dzięki CAT5, obsługującemu RS485 + zasilanieDo 1 procesora MTX można podłączyć maksymalnie 8 paneli DCP
DCP4S Cyfrowy panel kontrolny
Cyfrowy panel kontrolny do procesorów z serii MTX z możliwością montażu na ścianie, wyposażony w 4 przełącznikiŁatwe połączenia, dzięki CAT5, obsługującemu RS485 + zasilanieDo 1 procesora MTX można podłączyć maksymalnie 8 paneli DCP
DCP4V4S Cyfrowy panel kontrolny
Cyfrowy panel kontrolny do procesorów z serii MTX z możliwością montażu na ścianie, wyposażony w 4 potencjometry głośności oraz 4 przełącznikiŁatwe połączenia, dzięki CAT5, obsługującemu RS485 + zasilanieDo 1 procesora MTX można podłączyć maksymalnie 8 paneli DCP
RKH1 Rack mount kit
- Rack mount kit for MA2030a/MA2030/PA2030a/PA2030
