For Studios of Any Scale or Purpose

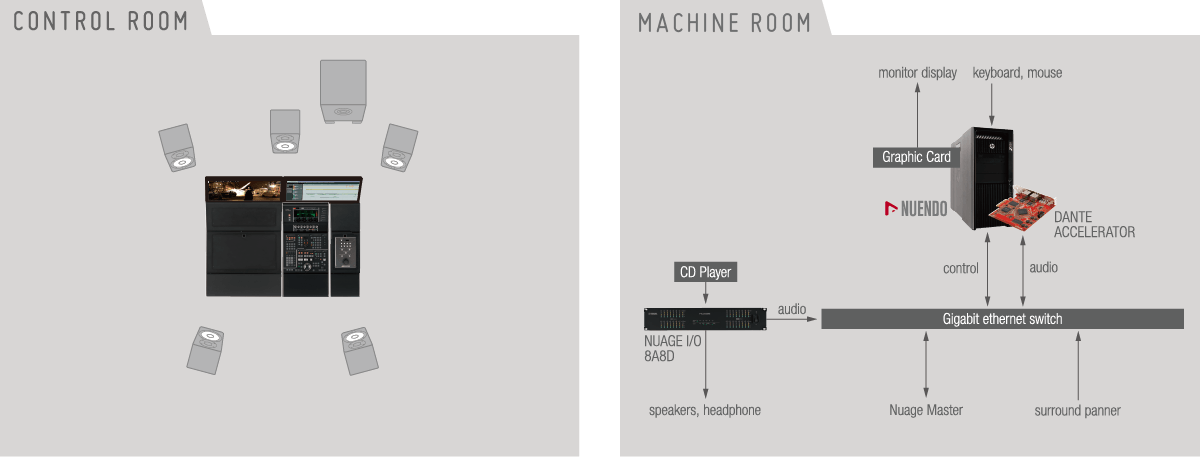

Sound Design Room

- Audio editing and sound effect creation are the primary purposes of this small system (no final mixing), so a single Nuage Master unit is all that is required.

- The Nuendo Control Room feature is used for monitor control, and since no voice-over or narration recording will be done, talkback/communication facilities are not needed.

- A single 5.1 channel speaker setup is provided, with only the front L and R speakers used for stereo projects.

- The Bass Management function built into Nuage I/O is used when bass management is necessary.

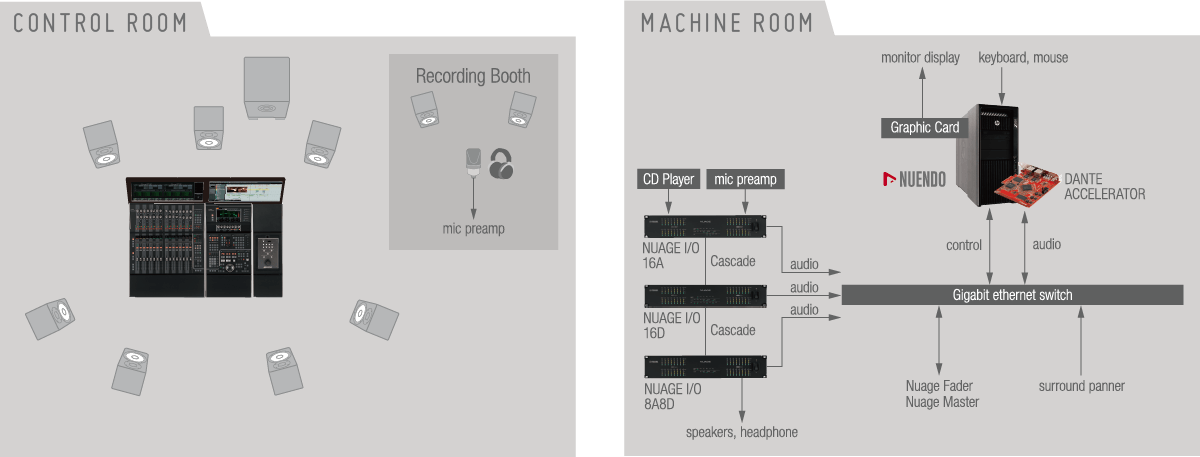

Small Scale Studio

- This small post production system featuring one Nuage Master unit and one Nuage Fader unit is intended primarily for in-the-box production.

- The Nuendo Control Room feature is used to control the monitor system as well as communication for voice-over recording. The cue mix is created within Nuendo, while Control Room is used for the talkback mix.

- A 7.1 channel speaker setup is provided, with only the front L and R speakers used for stereo projects.

- The Bass Management function built into Nuage I/O is used when bass management is necessary.

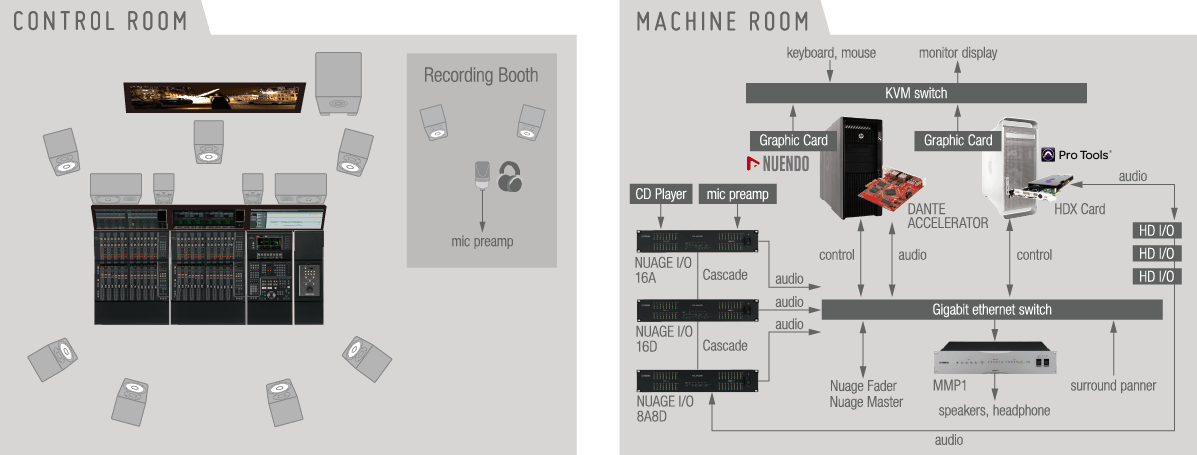

Mid Scale Studio

- This mid-size post production system featuring one Nuage Master unit and two Nuage Fader units is intended primarily for in-the-box production.

- Nuendo is assigned to DAW A and Pro Tools is assigned to DAW B, allowing DAWs to be switched as required.

- The Nuendo Control Room feature is used to control the monitor system as well as communication for voice-over recording. The cue mix is created within Nuendo, while Control Room is used for the talkback mix.

- An MMP1 Studio Monitor Management System is provided so that the monitor system and booth communication can be used even when Nuendo is not running.

- Three monitor systems are provided: 7.1 channel large monitors, stereo near-field monitors, and compact speakers for user-environment preview.

Theater

- A combined live sound reinforcement, live broadcast, and production system based around a Dante audio network.

- Audio is transferred from the stage inputs to the front-of-house and monitor consoles as well as the Nuage system via the Dante network, and is converted to MADI audio for transmission to an OB van.

- The Rio3224-D audio interface includes a gain compensation function that digitally adjusts output gain when analog gain changes are made remotely from the CL console or Nuage system, so that input levels on other devices are not affected.

- Nuage system input level adjustments are made via Nuendo/Cubase when gain compensation is activated.

Configurations for a Wide Range of Needs

Variations in size, equipment, projects handled, and operation style make every studio unique. Choose the Nuage configuration that best suits your studio.

Small Scale Setup with 1x Nuage Fader

Small Scale Setup with 1x Nuage Master

Small Scale Setup with 1x Nuage Fader & 1x Nuage Master

Mid Scale Setup with 2x Nuage Fader & 1x Nuage Master

Large Scale Setup with 3x Nuage Fader & 1x Nuage Master

Large Scale Setup with 3x Nuage Fader & 1x Nuage Master
