House of Worship Large

Zoned system for high quality BGM and paging

Music is delivered to multiple rooms from a single rack. In addition to central control of the entire system, controllers located in each room allow independent source selection and volume control.kers. Larger dance studios add a subwoofer to the speaker system for extra musical depth and impact.

Yamaha CIS speaker systems are specifically tuned for music reproduction so that the same excellent sound quality is achieved whether they are used at low or high volume.

The MTX matrix processor and XMV multi-channel power amplifier make it possible to deliver different sources to different areas of the facility while occupying a minimum amount of rack space.

The Priority Ducker function included in the MTX processor automatically lowers the music level when microphone input is detected.

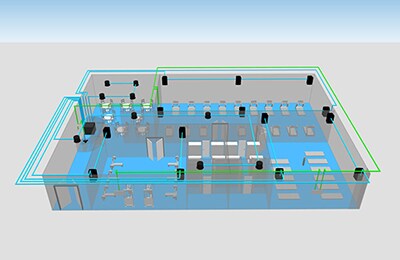

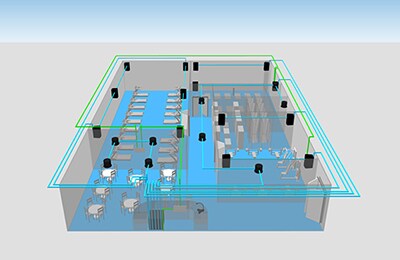

System

System

Components List

Model VXC4 ceiling speaker VXC6 ceiling speaker 4 VXS8 speaker DCP4V4S controller DCP1V4S controller MTX3 matrix
Qty 5 4 14 1 3 1
Model XMV8280 amplifier CD-C600RK CD player
Qty 1 2 0 0 0


Cable List

Name Analog Cable Speaker Cable: 100V CAT5E cable
Length 10m 330m 50m
